Noctua NF-B9 Vortex Control 92mm Quiet Computer Fan
After the successful introduction of the NF-P12 120mm fan in November 07, Noctua now is offering their first 92mm retail fan: The NF-B9 complements Noctua's much acclaimed 80 and 120mm fan series, which have been recommended by over 150 international websites and magazines, and achieves outstanding airflow and pressure performance at exceptionally low noise levels
The NF-B9's highly-optimized blade design achieves an exceptional level of airflow and static pressure that most other fans can only reach at much higher speeds. Bevelled blade tips, Vortex-Control Notches as well as Noctua's SCD drive system and premium-grade SSO-Bearing ensure outstanding quietness and long-term stability.

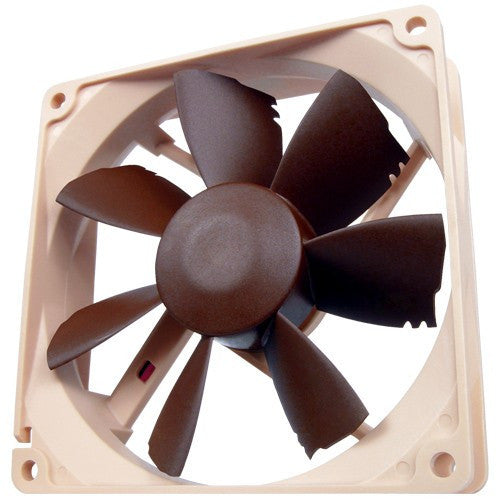

Bevelled Blade Tips Due to advanced design measures like the bevelled blade tips, the NF-B9 is surprisingly quiet despite its outstanding airflow and pressure performance.

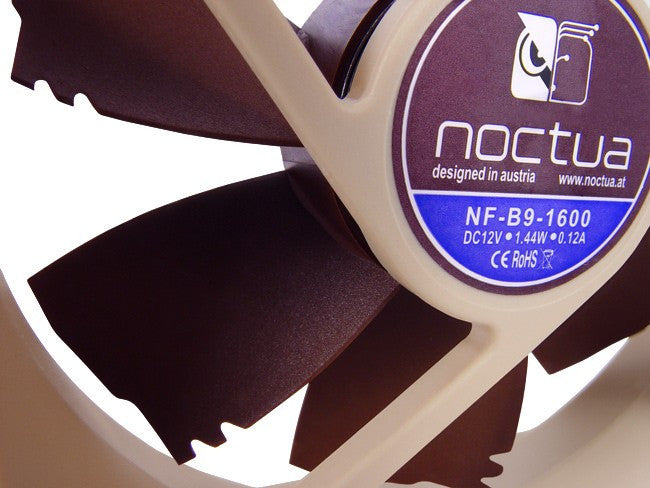

Vortex-Control Notches Psychoacoustic optimizations like the Vortex-Control Notches make the NF-B9's noise pattern more pleasant to the human ear.
Smooth Commutation Drive The new SC drive system reduces torque variations and thereby ensures improved running smoothness, particularly at lower speeds.
Self-stabilizing oil-pressure bearing Noctua's well proven SSO-Bearing technology guarantees supremely quiet operation and exceptional long-term stability.
| Size | 92x92x25 mm |
| Bearing | SSO-Bearing |
| Blade Geometry | NF-B9 Blade Design with BBT & VCN |
| Rotational Speed (+/- 10%) | 1600 RPM |
| Rotational Speed with L.N.A. (+/- 10%) | 1300 RPM |
| Rotational Speed with U.L.N.A. (+/- 10%) | 1000 RPM |
| Airflow | 64.3 m³/h |
| Airflow with L.N.A. | 52,6 m³/h |
| Airflow with U.L.N.A. | 41,1 m³/h |
| Acoustical Noise | 17,6 dB(A) |
| Acoustical Noise with L.N.A. | 13,1 dB(A) |
| Acoustical Noise with U.L.N.A. | 7,9* dB(A) |
| Static Pressure | 1,61 mm H2O |
| Static Pressure with L.N.A. | 1,09 mm H2O |
| Static Pressure with U.L.N.A. | 0,64 mm H2O |
| Input Power | 1,32 W |
| Input Current | 0,11 A |
| Voltage Range | 12 V |
| MTBF | > 150.000 h |

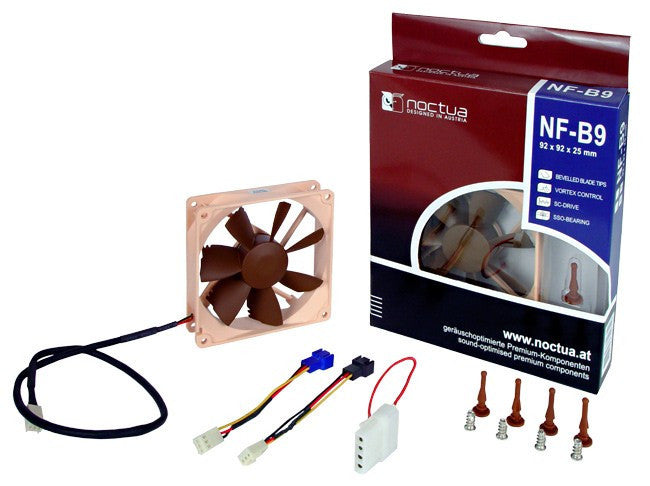

| Mounting hardware included |
|
