Dynatron S7 Intel 4677 1U Active Vapor Chamber CPU Cooler with E1B Carrier - High Performance Server Cooling Solution for Data Centers and Enterprise Workstations

Product Description

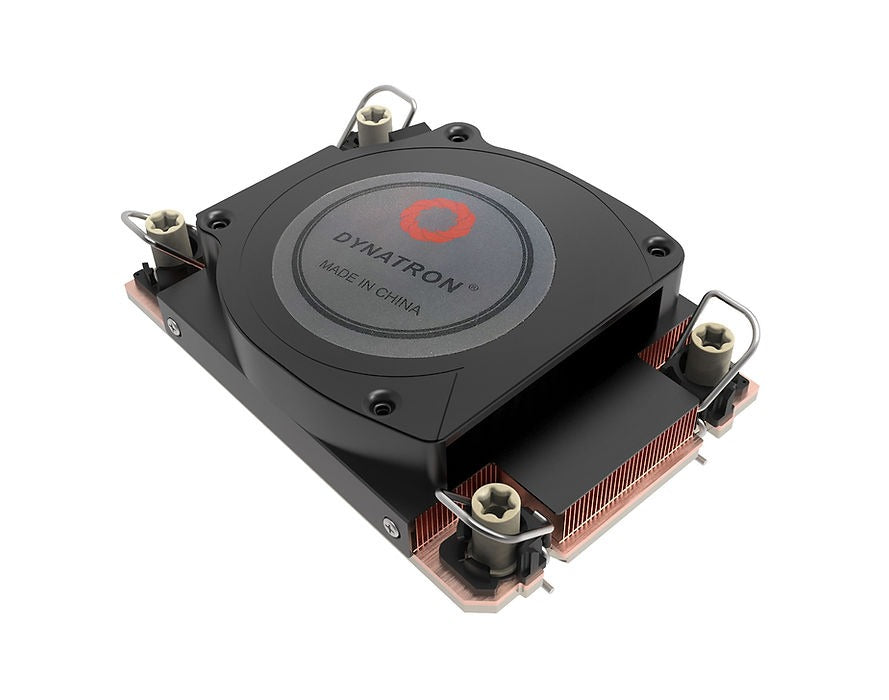

Dynatron S7 Intel 4677  (w/E1B Carrier) 1U Active Vapor Chamber CPU Cooler

840556075882

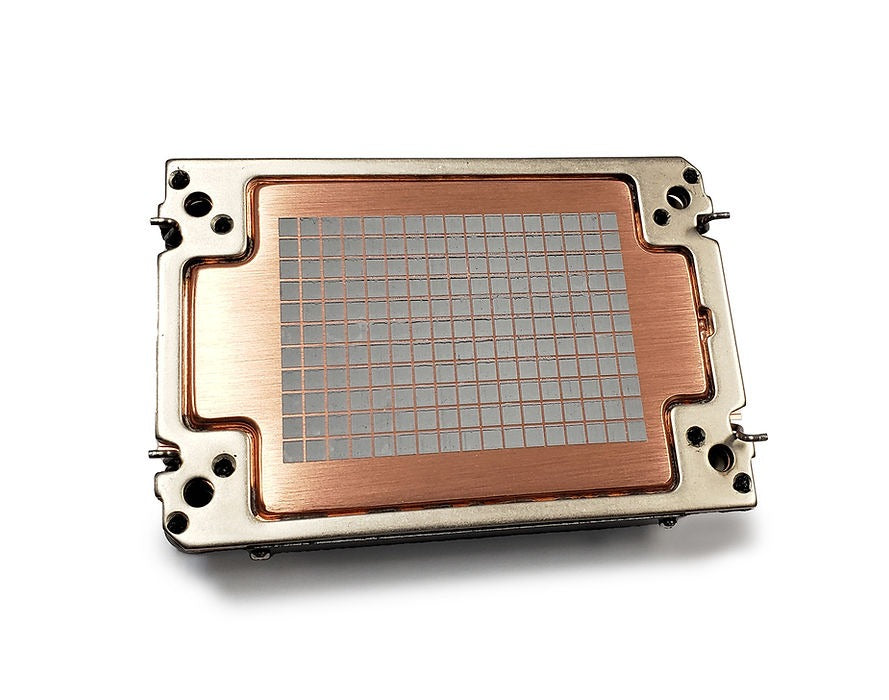

The Dynatron S7 4677 delivers advanced thermal management for Intel® Sapphire Rapids processors with a 1U active vapor chamber CPU cooler featuring a 205 watt power capacity that ensures reliable heat dissipation and optimal performance. Its copper heatsink with vapor chamber base ensures reliable cooling and efficient operations.

At Duty Cycle 20%: 1.08 W
At Duty Cycle 50%: 4.7 W
At Duty Cycle 100%: 23.45 W

At Duty Cycle 20%: 23.3 dBA
At Duty Cycle 50%: 43.5 dBA
At Duty Cycle 100%: 62.2 dBA

Air Pressure:
At Duty Cycle 20%: 3.15 mm-H2O
At Duty Cycle 50%: 21.07 mm-H2O
At Duty Cycle 100%: 77.16 mm-H2O

Lead Wire Pin Out:
Pin#1-Black(-)
Pin#2- Yellow(+)
Pin#3- Green(Tachometer/ Signal Output)
Pin#4- Blue (PWM)

CERTIFICATIONS:
UL Listed
RoHS Compliant
