Dynatron N11 Intel 4189 2U CPU Cooler - High Performance Server Cooling Solution for Data Centers & Workstations

Product Description

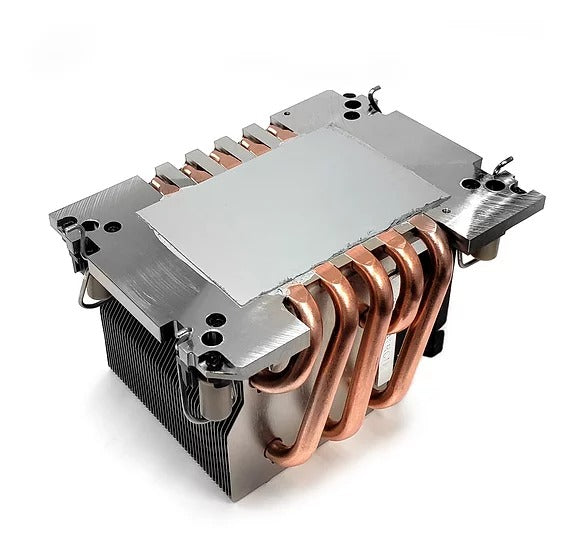

Dynatron N11 Intel 4189 2U CPU Cooler

840556074793

Recommend for Intel® Whitley Platform Ice Lake and Cooper Lake Server Processor, LGA 4189 sockets, Aluminum Fin stack with Heat Pipe embedded, Active Cooler for 2U Server and up, Support 270 Watts CPU Power Heat Dissipation.

PRODUCT SPECIFICATIONS:

• CPU Support: Intel
• CPU Socket: FCLGA 4189-4/5(Socket P4/P5 or P+)
• Solution: 2U Server and Up
• Dimensions: 113.0 x 82.0 x 66.0 mm
• Lead Wire Pin Out: Pin#1-Black(-)

  Pin#2- Yellow(+)
  Pin#3- Green(Tachometer/Signal Output)
  Pin#4- Blue (PWM)


• Mounting: Intel LGA4189 standard Mounting Kits
• Package Carrier: PHM Package Carrier is included
• Thermal Grease: Shin-Etsu 7762 pre-printed
• Fan Dimension: 60 x 60 x 25 mm
• Speed: At Duty Cycle 0~20%: 1700 ± 200 RPM

  At Duty Cycle 50%: 4000 RPM ± 10%
  At Duty Cycle 100%: 8500 RPM Min.


• Bearing Type: 2 Ball Bearing
• Rated Voltage: 12 VDC
• Power: At Duty Cycle 0~20%: 1.2 W

  At Duty Cycle 50%: 2.52 W
  At Duty Cycle 100%: 9.6 W

• Air Flow: At Duty Cycle 0~20%: 9.86 CFM

  At Duty Cycle 50%: 23.21 CFM
  At Duty Cycle 100%: 49.32 CFM

• Noise Level: At Duty Cycle 0~20%: 19.3 dBA

  At Duty Cycle 50%: 37.9 dBA
  At Duty Cycle 100%: 54.3 dBA

• Air Pressure: At Duty Cycle 0~20%: 0.86 mm-H2O

  At Duty Cycle 50%: 4.76 mm-H2O
  At Duty Cycle 100%: 21.5 mm-H2O

• Material: Aluminum Fin stack with Heat Pipe embedded
• Weight: 460 g

• RoHS Compliant
