Dynatron J10 2U Active Air Cooler - High Performance Server CPU Cooler for Rackmount Systems | Perfect for Data Centers, Server Rooms & Network Cabinets

Product Description

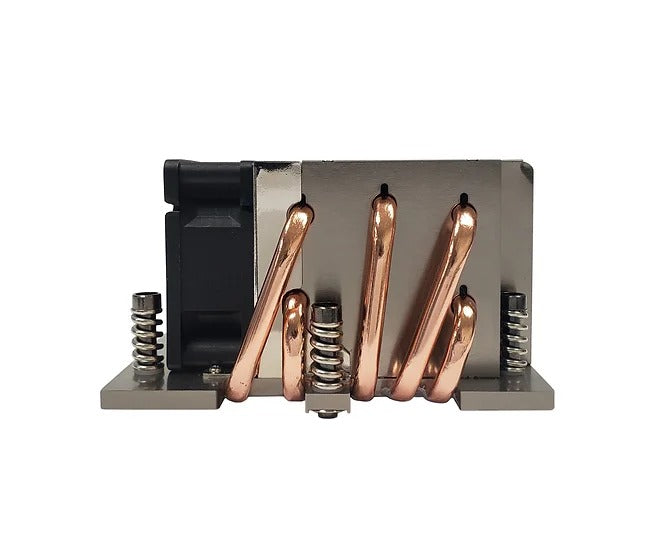

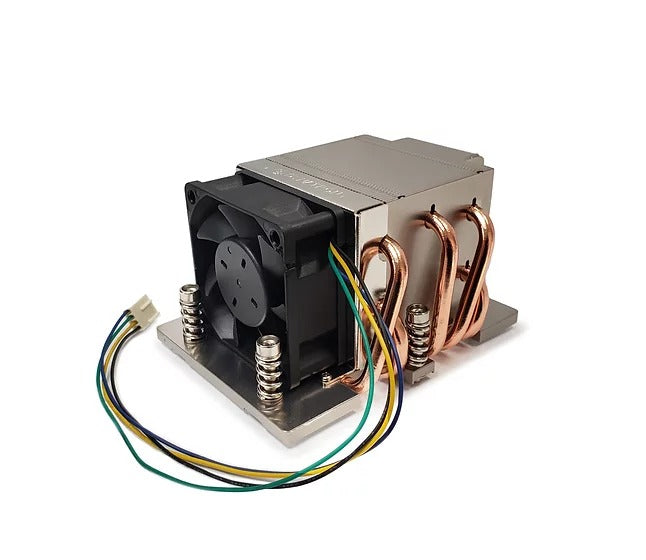

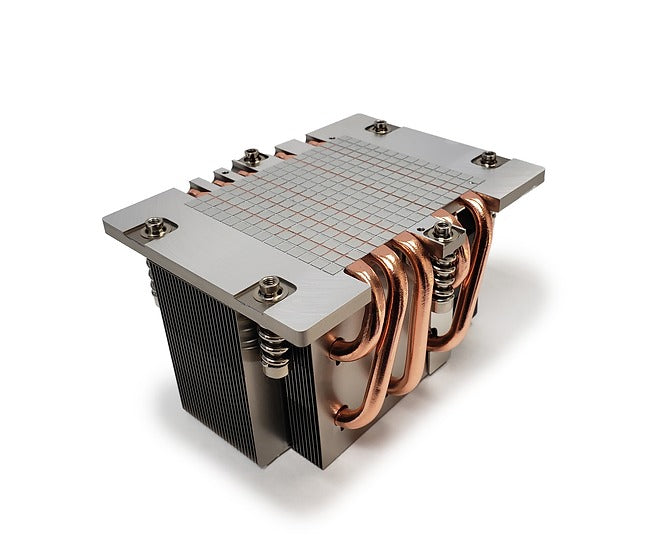

Dynatron J10 2U Active Air Cooler

840556075288

Recommend for AMD® Genoa® Processor Family, Socket SP5, Active Cooler for 2U Server & Up, 5 Heatpipes with Aluminum Fin Base and Aluminum Fin Stack, Support CPU Power up to 320 Watts Heat Dissipation.

PRODUCT SPECIFICATIONS:

• CPU Support: AMD
• CPU Socket: Genoa®, Socket SP5
• Solution: 2U Server and Up
• Dimensions: 118 x 92.4 x 65 mm
• Lead Wire Pin Out: Pin1- Black(-)

  Pin2- Yellow(+)
  Pin3- Green(Tachometer/Signal output)
  Pin4- Blue(PWM)

• Fan Dimension: 60 x 60 x 25 mm
• Speed: At Duty Cycle 20%: 2300 ± 200 RPM

  At Duty Cycle 50%: 5400 ± 10% RPM
  At Duty Cycle 100%: 11000 ± 10% RPM

• Bearing Type: Double Ball
• Rated Voltage: 12 VDC
• Power: At Duty Cycle 20%: 0.84 W

  At Duty Cycle 50%: 2.76 W
  At Duty Cycle 100%: 18.0 W

• Air Flow: At Duty Cycle 0~20%: 11.91 CFM

  At Duty Cycle 50%: 28.38 CFM
  At Duty Cycle 100%: 58.31 CFM

• Noise Level: At Duty Cycle 20%: 25.8 dBA

  At Duty Cycle 50%: 44.4 dBA
  At Duty Cycle 100%: 59.8 dBA


• Air Pressure: At Duty Cycle 20%: 1.48 mm-H2O

  At Duty Cycle 50%: 7.54 mm-H2O
  At Duty Cycle 100%: 28.8 mm-H2O

• Material: 5 Heatpipes with Aluminum Fin Base and Aluminum Fin Stack
• TDP: Support CPU Power up to 320 Watts Heat Dissipation
• Thermal Grease: Shin-Etsu 7762 Pre-printed
• Weight: 510g
