NF F12 Industrial PPC 24V 3000 RPM PWM Fan - Waterproof IP67 Rated for Servers, Gaming PCs & Electronic Enclosures - High Performance Cooling Solution

Product Description

**1 piece remaining**

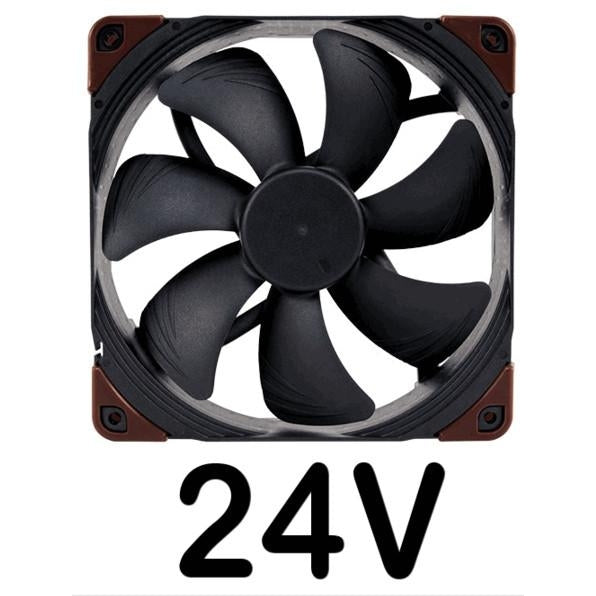

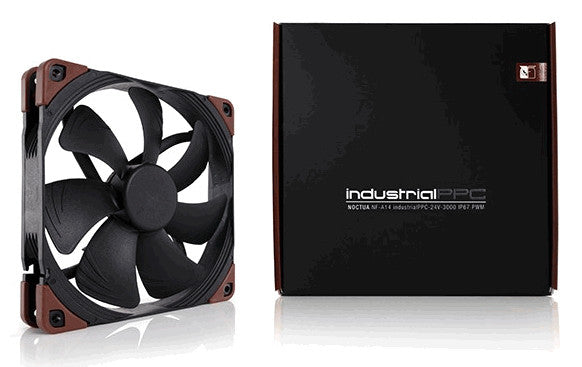

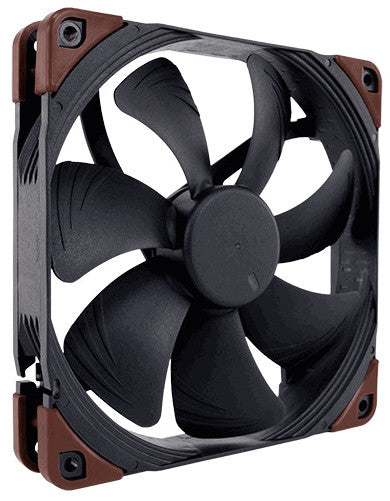

Noctua 120x120x25mm NF-F12 Industrial PPC-24V-3000 Q100 IP67 PWM

DISCONTINUED AND REPLACED WITH 'SP' MODEL:

840556104391

Conceived for industrial heavy duty applications that require enhanced cooling performance and advanced ingress protection, the NF-F12 industrial PPC (Protected Performance Cooling) is a ruggedised high-speed version of the award-winning retail model.

Thanks to the outstanding aerodynamic efficiency of the NF-F12 design and the use of a novel three-phase motor, the industrialPPC version provides superior airflow and pressure capacity while keeping noise levels and power consumption moderate as against comparable high-speed fans.

While its fibre-glass reinforced polyamide construction and certified water and dust protection make the NF-F12 industrialPPC suitable for operation in challenging environments, the renowned SSO2 bearing technology guarantees an MTBF of over 150.000hrs.

Topped off with Noctua’s trusted reliability and 6 years manufacturer’s warranty, the NF-F12 industrialPPC is an ideal choice for highly demanding applications that require superior flow rates and ultimate dependability.

FEATURES:
Blade Geometry Heptaperf™
Frame Technology FocusedFlow™
Acoustical Noise 43.5 dB(A)
Static Pressure 7.63 mm H₂O
Max. Input Power 4.32 W
Max. Input Current 0.18 A
Voltage 24 V
MTBF > 150.000 h

PRODUCT SPECIFICATIONS:
Fan Size: 120x120x25mm
Connector: 4-Pin PWM
Bearing: SSO2
Rotational Speed (+/- 10%): 3000 RPM
Min. Rotational Speed (PWM, +/-20%): 750 RPM
Rotational Speed @ 12V (+/- 10%): 1600 RPM
Airflow: 109 CFM (186.7 m³/h)

ACCESSORIES:
Fan
4 Fan Screws
Warranty 6 years from manufacturer
Ingress Protection IP67
Material Fibre-glass reinforced polyamide
Motor type Three-phase
