Pfannenberg PFA 20000 Industrial Exhaust Filters - 6 Pack NEMA 12 Air Filters (11720004055 / 11720004050) for HVAC Systems & Electrical Enclosures

Product Description

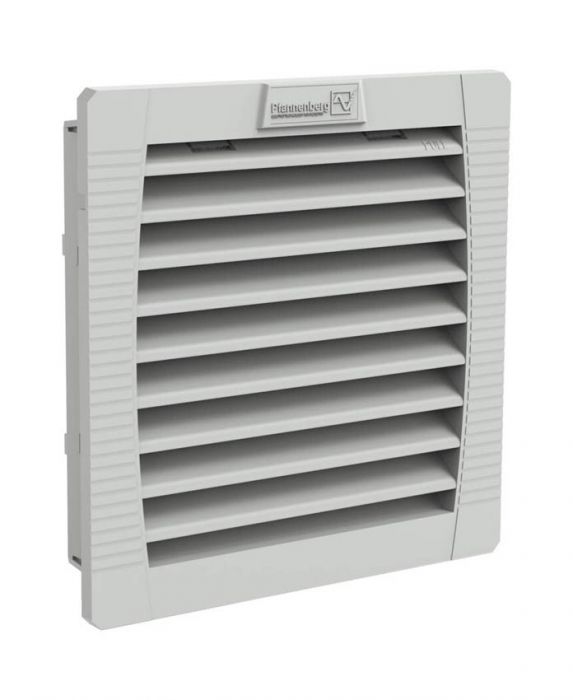

Pfannenberg PFA 20000 Exhaust Filters 6" Nema 12 Filter

Lead Time: 2-3 weeks for 100+ units

11720004055 / Grey
11720004050 / Black

840556071372

NEMA Type 12 Protection
The closed frame design prevents unfiltered air from penetrating the cabinet.

Patented Tool-Less 4 Corner Fastening System
The patented fastening system allows for fast installation (possible to install in seconds) and easy removal reducing MTTR.

Highest System Airflow Compared to Competitors Filter Fans
The design of the louvers supports the greatest airflow while further protecting against airborne dust and dirt.

Globally Compatible
ERP compliant to meet European efficiency directives. Units also comply with additional national and international standards, e.g. TÜV, NEMA, UL, CSA and EAC.

Versatile Options
Options including UV Protected Plastic for use in direct sunlight, EMC shielding to attenuate RF signals and exhausting fans for custom applications.

Aesthetically Pleasing Design Using Neutral Colors
Available in a standard RAL 7035 Grey or RAL 9011 Black. These units blend in well with the modern styles and colors used for existing machines and systems.

PRODUCT SPECIFICATIONS:
DESIGN (housing and protection against accidental contact): Made of injection-molded thermoplastic, self-extinguishing, UL 94 V

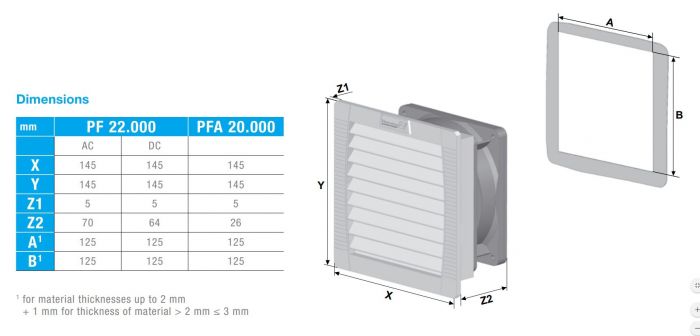

CUT OUT DIMENSIONS (mm): 125 x 125
W x H x D (in): 5.71 x 5.71 x 1.22
SYSTEM OF PROTECTION (EN 60529): IP 54
System of protection (UL 50): NEMA Type 12
FILTER MAT QUALITY CLASS: G 4

CERTIFICATIONS:
UL, cUL, CE, TÜV, NEMA, CSA, EAC
