Dynatron A26 2U Server CPU Cooler - High Performance Active Air Cooling for Rackmount Servers - Ideal for Data Centers & Server Rooms

Product Description

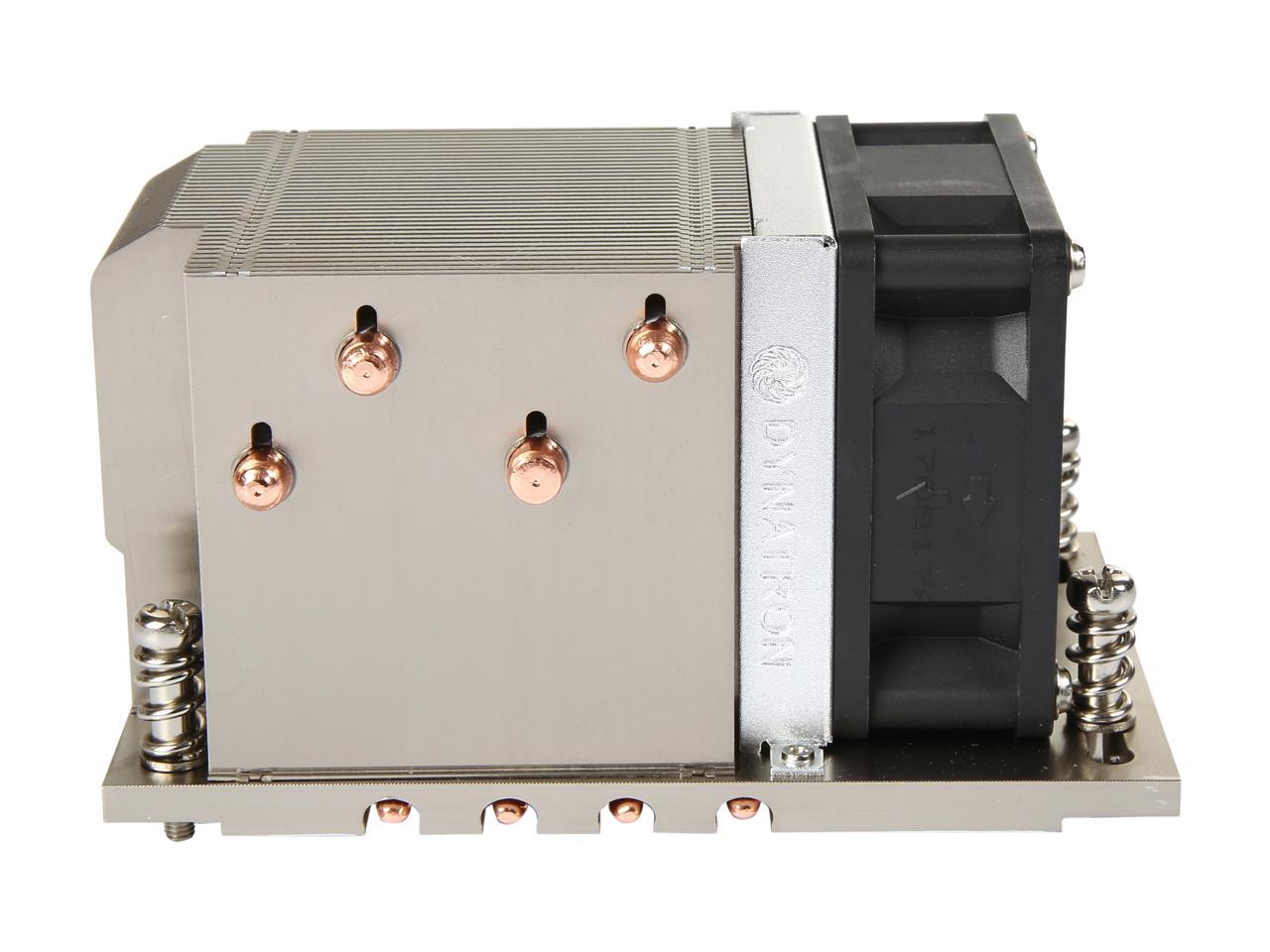

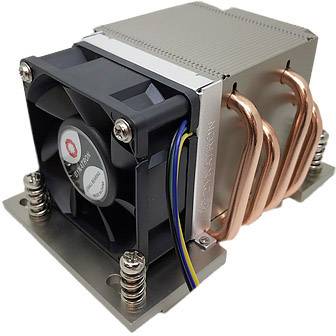

Dynatron A26 Active Air Cooler
840556074625

The Dynatron A26 Active Air Cooler keeps your thread ripper cool and is designed to occupy less space to internal parts notably to your ram. Proven and tested to be an excellent cooler for CPU's.

This cooling unit is reinforced with an aluminum heatsink with an embedded heat pipe ensuring solid cooling performance.

The A26 Active Air Cooler is best put as a side-mounted fan. This will keep your CPUs, workstations, and servers below the limit and keep them running at their best performance.

This Air Cooler is also suitable for 2U Servers and Workstations.

 PRODUCT SPECIFICATIONS:

• CPU Support: AMD
• CPU Socket: sWRX8/sTRX4/TR4/SP3
• Solution: 2U Server and Up
• Dimensions: 119.0 x 79.0 x 65.0mm
• Lead Wire Pin Out: Pin1- (-)
                                   Pin2- (+)
                                   Pin3- (Tachometer/Signal output)
                                   Pin4- (PWM)
• Fan Dimension: 60 x 60 x 25 mm
• Speed: At Duty Cycle 20%: 1600 ± 200 RPM
               At Duty Cycle 50%: 4000 ± 10% RPM
               At Duty Cycle 100%: 8000 ± 10% RPM
• Bearing Type: 2 Ball Bearing
• Rated Voltage: 12V DC
• Power: At Duty Cycle 20%: 1.2 W
               At Duty Cycle 50%: 2.28 W
               At Duty Cycle 100%: 7.2 W
• Air Flow: At Duty Cycle 20%: 8.85 CFM
                  At Duty Cycle 50%: 21.88 CFM
                  At Duty Cycle 100%: 43.75 CFM
• Noise Level: At Duty Cycle 20%: 18 dBA
                        At Duty Cycle 50%: 37.9 dBA
                        At Duty Cycle 100%: 53 dBA
• Air Pressure: At Duty Cycle 20%: 0.76 mm-H2O
                        At Duty Cycle 50%: 4.76 mm-H2O
                        At Duty Cycle 100%: 19.04 mm-H2O
• Material: Aluminum Heatsink with Heatpipe Embedded
• Weight: 450g
