Dynatron B13 2U Active CPU Cooler - High Performance Server Cooling Solution for Data Centers & Rackmount Systems

Product Description

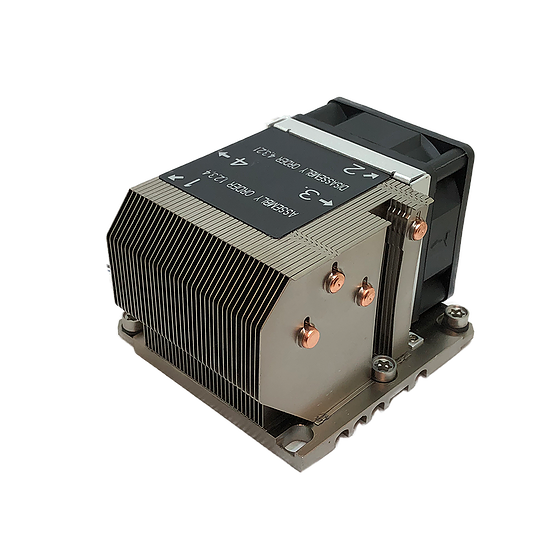

Dynatron B13 2U Active CPU Cooler

840556004677

Intel® Socket FCLGA3647 Square ILM  60x60x25mm PWM Fan
Aluminum heatsink with heat pipe embedded for 2U Server up to CPU power 205 Watts

Speed
At Duty Cycle 20%: 1400 ± 200 RPM
At Duty Cycle 3400 ± 10% RPM
At Duty Cycle 100%: 7000 ± 10% RPM

Power
At Duty Cycle 20%: 0.90 W
At Duty Cycle 50%: 2.04 W
At Duty Cycle 100%: 5.40 W

Air Flow
At Duty Cycle 20%: 8.12 CFM
At Duty Cycle 50%: 20.31 CFM
At Duty Cycle 100%: 40.60 CFM

Noise Level
At Duty Cycle 20%: 16 dBA
At Duty Cycle 50%: 35 dBA
At Duty Cycle 100%: 50 dBA

Air Pressure
At Duty Cycle 20%: 0.58mm-H2O
At Duty Cycle 50%: 3.65 mm-H2O
At Duty Cycle 100%: 14.58 mm-H2O

Lead Wire Pin Out
Pin1- (-)
Pin2- (+)
Pin3- (Techometer/Signal output)
Pin4- (PWM)

Thermal Grease: Shin-Etsu 7762 Pre-printed

CERTIFICATIONS: RoHS Compliant

Prices had in October 2018 to increase due to new Section 301 tariffs.
